Quick Instance
€10.00
This tool helps dealing with complex fixtures in MA3. With this tool you easily define which instances you want to select and the tool will add them to the selection grid in a convenient way. See the examples below for more info.
This tool can be easily installed with just a single XML file.
❗️ Purchasing this tool also comes with bug fixes and future versions (to a certain extend)
Click here for a demonstration
Features
- Easy installation with just one XML file
- Unique Z index for each instance of a fixture
- Spread subinstances in X or Y direction
- Easily select each part of the fixture with the Z component of MAtricks
Requirements
- GrandMA3: 2.x
Examples
In the examples below we use a fixture having both a plate and a beam.
Layout over X and Y

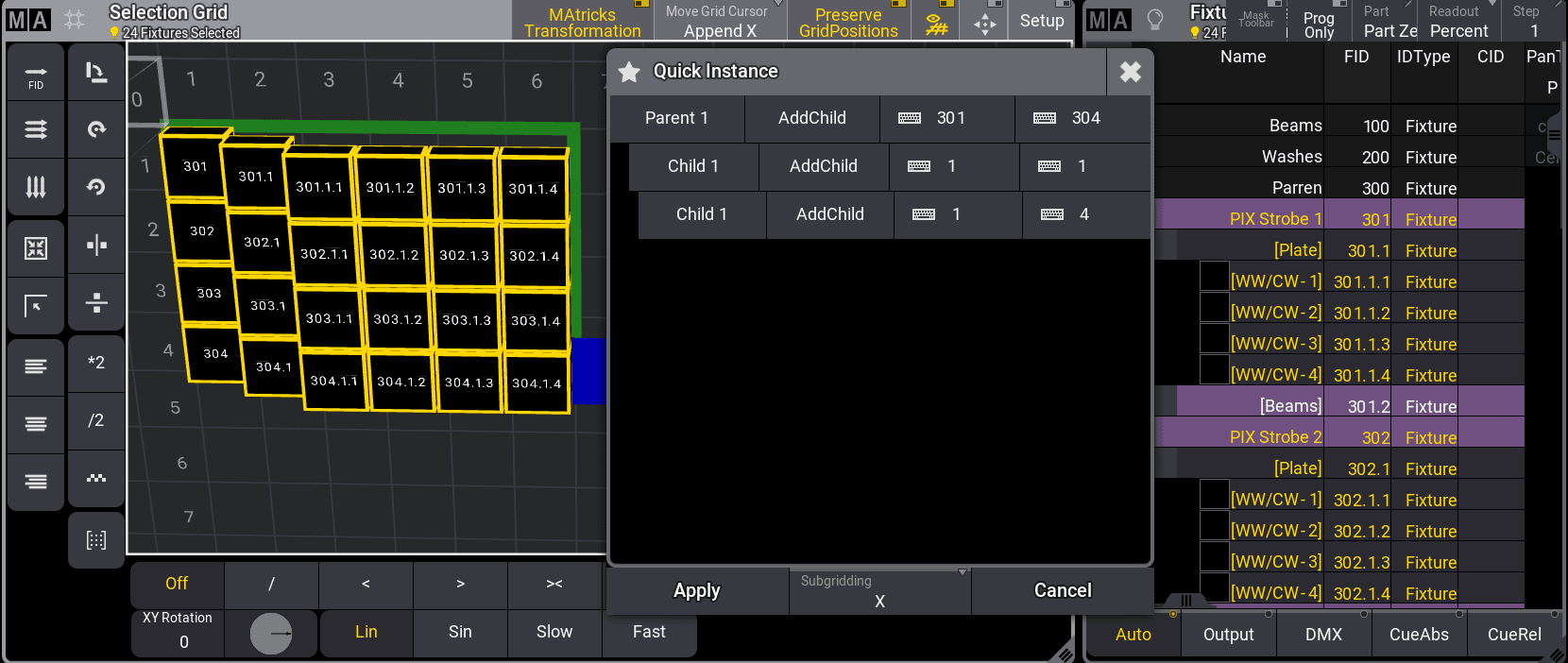

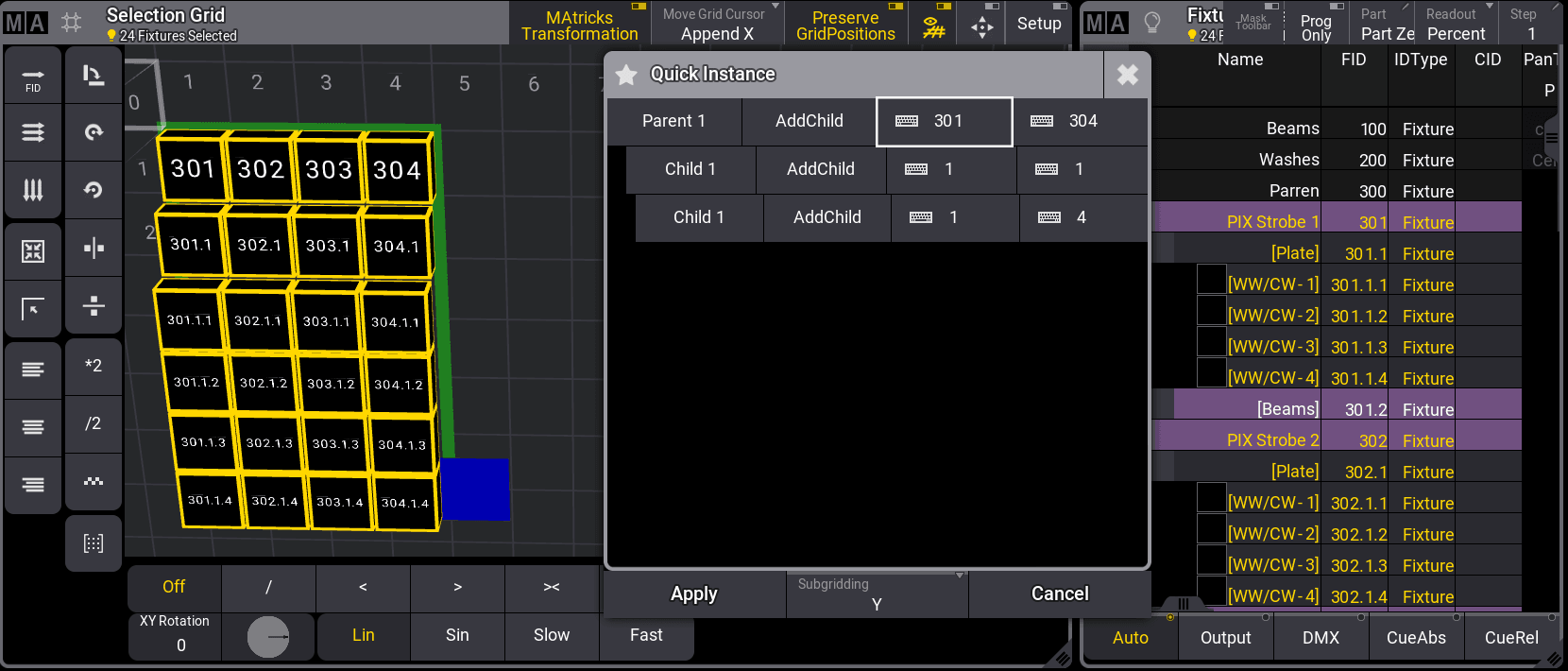

Below an example is shown where the instances for each fixture are spread over X. Fixture 301 thru 304 are shown and their subinstances are spread in the X direction. Furthermore, each instance is also in a unique Z direction. We can do the same thing in the Y direction instead.
Reviews
Constantijn
Great plugin for dealing with complex fixtures!
